    Fully Automatic Disposable Medical Mask Making Machine/Dust Mask Making Machine with stable performance

    Automatic disposable face mask making machine


    General introduction

    The machine is a full-automatic, foldaway and high-speed planar mask production line. It uses the whole roll to load material. It can recombine multilayer non-woven fabric, fold and embed the cross bar of the mask with the automatic tension sensing control system and automatic edge correction system. After hot pressing with high temperature, round welding and cutting, it completes a mask. This machine can output masks at high speed.


    General configuration

    No.ItemDescription
    1Size3500mm(L) x 1200mm(W) x 1700mm(H)
    2Color

    International standard color---Warm Grey(1C)

    Follow this standard in the absence of special instructions.

    3Weight≤1500kg, ≤500kg/m2(the ground bearing)
    4Power Supply220V,50HZ,9KW(rated power)
    5Operating Environment

    10℃~35℃(temperature),

    5HR~35%HR(humidity),

    No flammable and corrosive gas,

    No dust(Clean class must not be lower than 100,000 )


    Main constituent structure

    1. Maximum 3 sets of the rolls for placing fabric, maximum winding diameter---Max600mm.

    2. Fabric unwinding method: Actively unwind. Unwinding automatically according to the position of tension roller.

    3. Welding of the cross bar: Unwinding, laying flat, fixed length conveying, cutting and welding.


    The incoming material

    No.MaterialOutside
    Diameter
    (mm)
    Roll Inner
    Diameter
    (mm)

    Width
    (mm)

    Thickness
    (mm)

    Weight
    (kg)

    Remark


    1Lateral non-woven fabricMax 60076.2175±2NAMax 201 layer
    2Melt-blown fabricMax 60076.2175±2NAMax 201 layer
    3Close skin cottonMax 60076.2195±2NAMax 201 layer
    4Cross barMax 4001903-5±0.20.5-1.0±0.1301 roll
    5Ear bandroll/box76.25-8Max 1.2Max 102 rolls per

    The product specifications

    The specifications and sizes of masks shall be provided by Party A. To ensure the size of the product, Party B is responsible for making hob and cutter according to the drawings. Party A shall provide the drawing of masks’ specification and dimension. Party B shall provide the above specifications.


    The production capacity of the machine

    1. Production efficiency: 0-700 per minute(the specific capacity depends on the operator)

    2. Scope of masks: 170mm-175mm long, 95mm wide

    3. The symmetry of folding: +/-1mm


    Configuration list of main components

    NoItemBrandRemark
    1Tension sensorBoxin/TaiwanSubject to existing goods
    2Servo motorChuanhe/Zhejiang
    3PLCChuanhe/Zhejiang
    4BearingNSK/Japan
    5Touch screenWeinview/MCGS,WECON
    6RelayOmron
    7ButtonOmron

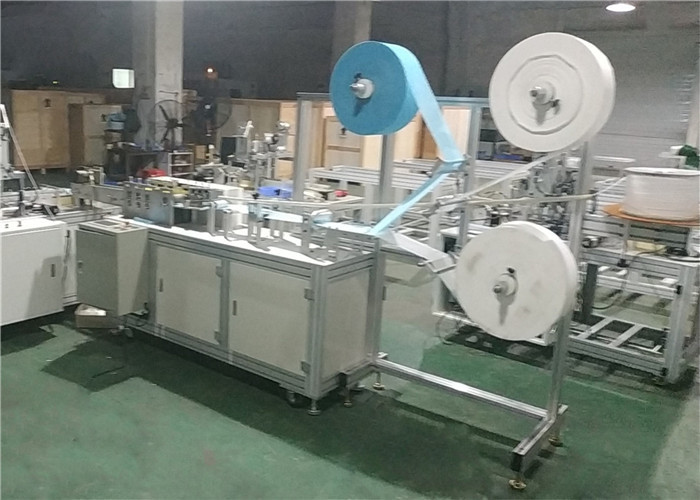

    Machine picture

    Fully Automatic Disposable Medical Mask Making Machine/Dust Mask Making Machine with stable performanceFully Automatic Disposable Medical Mask Making Machine/Dust Mask Making Machine with stable performance

    Fully Automatic Disposable Medical Mask Making Machine/Dust Mask Making Machine with stable performance
